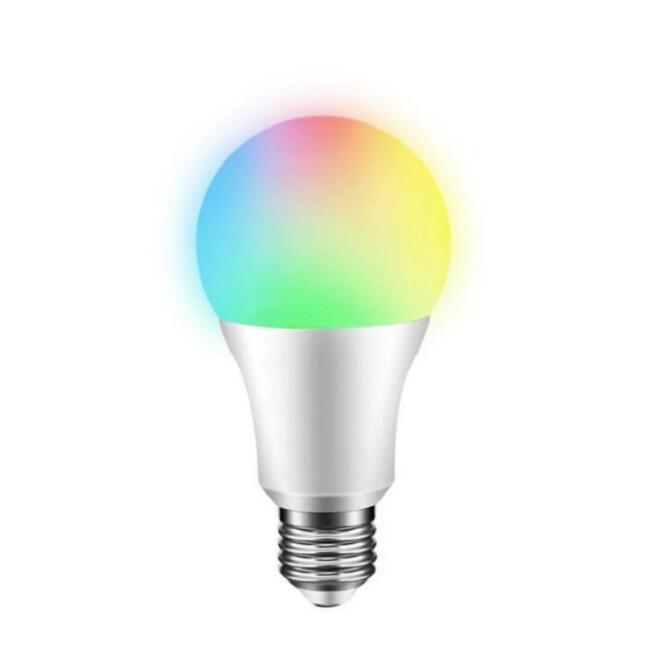

7W smart bulb wifi smart bulb lamp alexa smart home preferred led bulb

Product name：7W smart bulb wifi smart bulb lamp alexa smart home preferred led bulb

Item：WF-ZND001

Details：

Function and indicator description

l Press the light switch three times in succession, the white light flashes to enter the distribution network mode, and the white light flashes to enter the AP compatible distribution network mode.

l APP can set the brightness of RGB white light, you can choose the lantern / scene light mode

l APP supports timing function

l APP support lamp name modification function

l APP supports third-party voice control...

Test hotspot description

l Production hotspot smart_lamp_test

l Each time the power-on scan is performed, the hot spot is detected. If the red light is steady on, the production test is successful. R G B W Automatic interval 1s cycle is bright after 10 minutes. Switch to the aging mode.

l W (rgb does not light) remains on for 20 minutes RGB (w does not light) and lights up for 10 minutes at the same time

l Continuously power on more than 3 times in the production test mode. Exit the production test mode and enter the normal distribution mode.

l If you are connected to the network, you need to use the app to remove or power on three times to enter the distribution mode. Keep power on for more than 10 seconds. Power off and then power on again to re-enter the production test mode.

Technical Parameters

u Rated power: 7W (7+2)

u Input voltage: 100~240V

u Lumens: 700 lm

u Working temperature: 0 ° C - 40 ° C

u Wireless type: Wi-Fi 2.4GHz

u APP supports operating system: Android 4.1\ IOS 8.0 version and above

Product parameters
Product Name	WIFI smart bulb
Product power	5W/7W/9W/10W
Lamp type	E26/E27
Rated voltage	AC100-240V 50HZ/60HZ
Power factor	>0.5
Color temperature	2500K-7000K
Light intensity	580lm-1000lm
Color rendering index	>80
Control method	APP control, voice control
Working temperature	-24-40℃
Aluminum substrate	1.6mm
