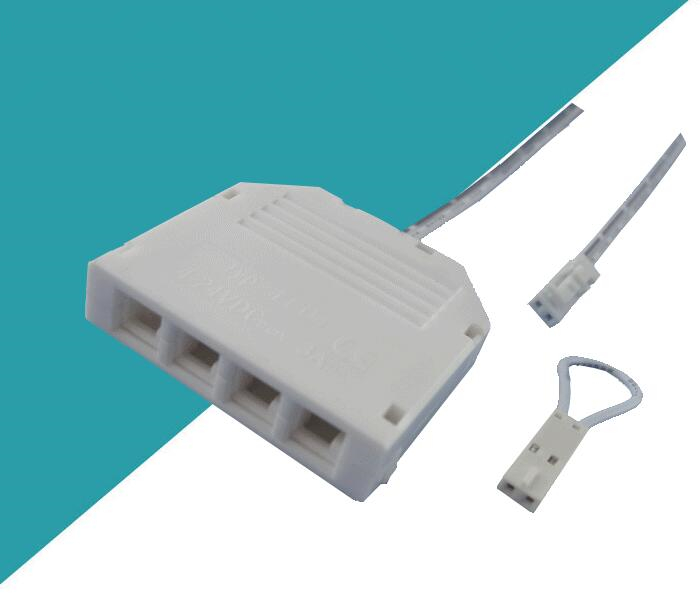

LED cabinets junction box one for four led junction box DuPont 2.54 port halogen connector

Product name：LED cabinets junction box one for four led junction box DuPont 2.54 port halogen connector

Item：WF-CX004

Details：

LED cabinets junction box one for four led junction box DuPont 2.54 port halogen connector

Product parameters:
Brand	WIFOR
Model	WF-CX004
Type	LED junction box
Box color	white / black
Wire	Can be done according to customer requirements
Total load	max.12V/3A
Current	1A / single output
Circuit	series (constant current) / parallel (constant voltage)
Line length (MM)	100MM-5000MMcan be customized according to customer requirements
Power	36-150W
Material	ABS

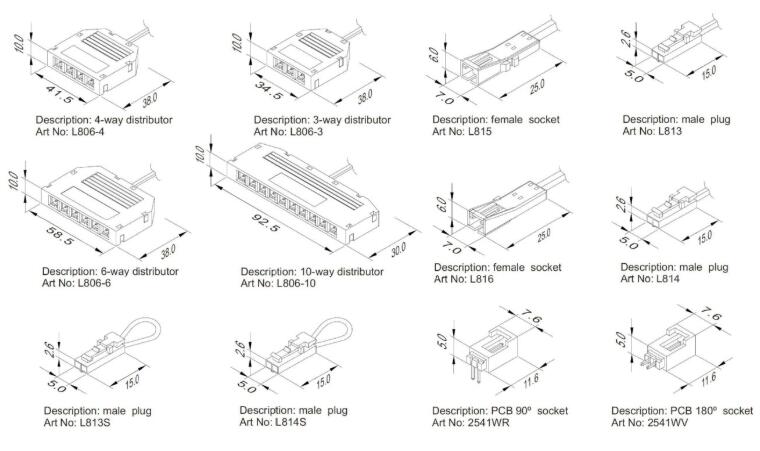

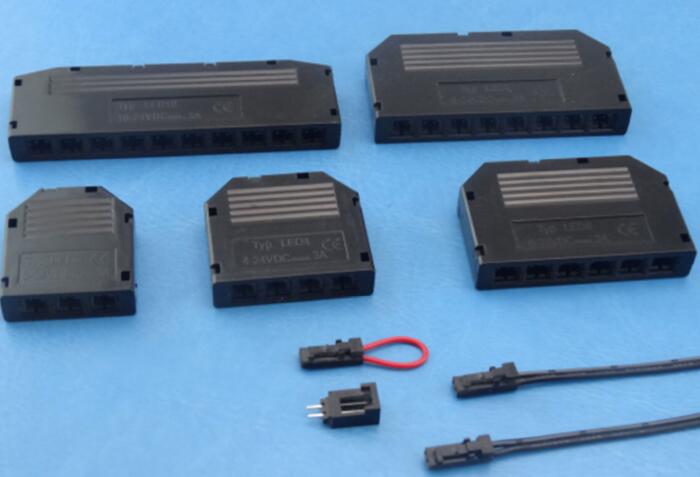

Model	XH junction box (2 digits, 3 digits, 4 digits, 6 digits, 10 digits)

product advantages:

1. Quick installation and saving installation costs.

2. There is no need to drive one LED for each LED. Users only need one
driver to connect multiple lamps (light bars).

3. It has a special design with quick connection function and anti-reverse
insertion. It is convenient, safe and fast to install, energy saving
and environmental protection, and small size.

4. Beautiful appearance.

5. Seamlessly connect with European and American LED systems.

6. Meet the new European rohs standard.

7. It is common with system junction box cables in Europe and America.

8. The case is made of high quality ABS material, which has impact
resistance, heat resistance, low temperature resistance, etc.

9. The needle seat is made of pure copper tin-plated + PA66 material,
which has oxidation resistance, high temperature resistance and corrosion resistance.

use:

Uses: Suitable for European indoor LED ceiling light, LED Downlight,
LED cabinet light, LED spotlight, LED decorative light, 3528 monochrome
soft light strip, hard light strip and other product connection fields
