Instruction

Motorized Series rotatable tabletop socket is mainly used in advanced office, hotel and home, training room, lecture room. Tabletop socket could be used with other installation surrounding together. When power with the desktop power socket, the indicator light is power on, product come to working sation. Press the up/ down switch, all the multi-functional sockets could be rotate 180 degree to whatever position as needed.  All configuration on desktop socket could be hidden under table if unused and would be rotating into the tabletop by automatically.



Specification

1. High quality and anti-dusty;
2. Anti-pinch function:  when the tabletop socket is turning, if there is something come and stay on the connector, the socket will turn back to the last position.

3. Easy to use: two switches on the panel, open and closure.

4. When the tabletop socket is not being used, you can close it with the buttom on panel to keep it anti-dusty, and the table tiny.

5. The modules can be change freely as you need;

6. Available connectors: EURO power, Schuko power, French power, USA power, UK power, Australia power, South Africa power, international power, 3.5 audio, Dual-audio, video, rj11, rj45, MIC, HDMI, USB, VGA, XLR, RCA etc;

7. Direct factory price with OEM service

8. CE& ROSH certification. SASO approved !

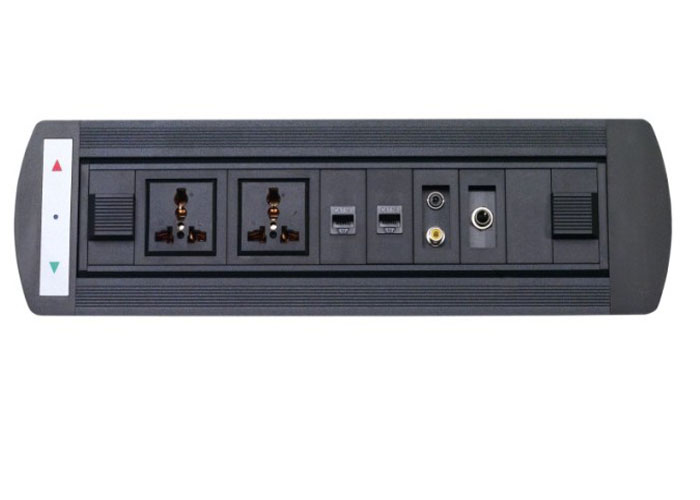

Item	WF-E006  Motorized flip up power socket
Material	Aluminum alloy
Color	Black/Silver
Product size	380*110*103mm
Cut-out size	347*104mm
Configuration	Universal power*2+Network*2+Video+3.5 audio+6.35 microphone or custom as requirements
